October 9, 1944. The Brockman Inlet, Shelt Estie, the Netherlands. As darkness fell, a convoy of enormous machines rolled toward the water’s edge. They were 23 ft long, nearly 10 ft tall, and sat on eight oversized rubber wheels. They looked like steel bathtubs mounted on a bus chassis. Nobody watching from the shore could quite believe what happened next.

 The machines drove straight into the water. Their twin engines roared so loudly that German anti-aircraft guns across the eststerie opened fire, mistaking the sound for incoming aircraft. These were terrapins, British amphibious vehicles that could cross a mile of open water, climb a muddy bank on the far side, and deliver 20 armed soldiers directly into the German rear.

 The men inside could not see where they were going. The driver sat blind between two screaming engines. A second crewman stood behind him, shouting directions over the noise. It was one of the strangest vehicles of World War II. It also played a crucial enabling role in one of the war’s most difficult campaigns.

 By autumn 1944, the Allied advance across northwest Europe was choking on its own success. The armies had outrun their supply lines. The port of Antwerp, captured intact on September 4, had the capacity to handle 30,000 tons of supplies per day. That would have solved everything. There was one problem. German forces still controlled both banks of the Shelt Estie, the 54 mile waterway connecting Antworp to the open sea.

 Until those banks were cleared, the port was useless. Supply lines stretching back to the Normandy beaches were delivering barely 7,000 tons per day. Entire divisions were running short of fuel, ammunition, and food. The terrain made the problem worse. The Netherlands sits below sea level. The land consists of roughly 2500 individual boulders, each enclosed by raised dikes and kept dry by constant pumping.

 The Germans understood this landscape and turned it into a weapon. They stopped the drainage pumps. They opened slle gates at high tide to admit seawater. They breached dikes deliberately. Within weeks, vast areas of the battlefield were underwater. Roads that ran along the tops of dikes became narrow. Exposed causeways four to 5 m above the flooded fields.

 The water on either side was often too shallow for conventional boats, too deep and muddy for wheeled or tracked vehicles, and too soft to walk through carrying equipment. Assault boats could operate in some sectors. But across the worst flooded boulders, the muddy, uneven bottom made them impractical.

 It was a treacherous hybrid landscape that stopped most conventional military movement entirely. The Allies needed machines that could drive on roads, swim across open water, and crawl through flooded fields. The obvious answer was the American DUKW, a six- wheeled amphibious truck based on the proven General Motors lorry chassis.

The Americans had built over 21,000 of them. Britain received roughly 2,000 under Len lease. That was not enough. The War Office issued a specification for a British alternative, and the contract went to John Thornraftoft and Company, a firm with expertise in both commercial vehicles and ship building based in Bessing Stoke in Southampton.

Thornicoft faced a constraint the Americans never encountered. Britain could not spare any existing lorry chassis for conversion where the Americans had simply waterproofed a truck they were already mass-producing. Thornicoft had to design something from scratch. Their solution was unconventional.

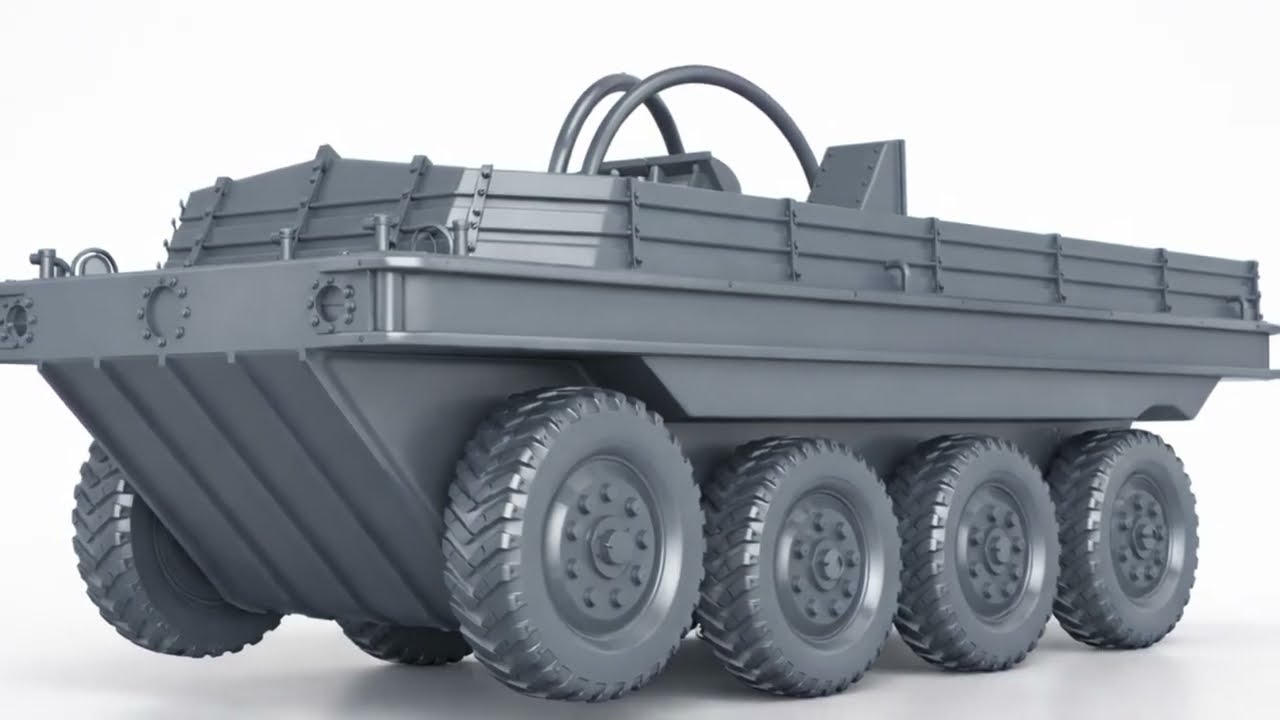

 They built a boat-shaped hull from welded steel plate with no separate chassis underneath. The hull itself provided both buoyancy on water and structural strength on land. Into this hole, they mounted two Ford V8 petrol engines side by side in the center of the vehicle. Each engine produced roughly 85 to 95 horsepower, giving a combined output of between 170 and 190 horsepower.

 Each engine independently drove the four wheels on its side and one of two rear-mounted screw propellers. This twin engine layout created the Terapin’s most distinctive characteristic. Steering was achieved by breaking one side while powering the other. A system called skid steering. It worked identically on land and water, and it demanded constant physical effort from the brake levers.

The wheel arrangement was equally unusual. The Terrapin had eight wheels on four axles in an 8×8 configuration. On flat, hard ground, only the four middle wheels touched the surface. The front axle wheels were raised high, specifically designed to help the vehicle clamber up muddy river banks when emerging from water.

 The rear axle wheels hung slightly above the surface and engaged only on soft ground or slopes. Unladen, the Terrapin weighed 7 tons. Fully loaded with its 4-tonon payload, it reached 11 tons. On land, it managed 15 mph. In water, the two propellers pushed it along at 5 mph. manufacturing went to Morris Commercial Cars in Birmingham since Thornycraft lacked the factory capacity for mass production.

 According to production records, around 500 Terrapin Mark1 vehicles were ordered with roughly 450 actually completed between late 1943 and 1944. The vehicle carried no weapons and no formal armor, though its welded steel hull offered some resistance to small arms fire and shell splinters that the thin skinned DUKW lacked entirely.

 Its crew consisted of just two men. The driver sat sandwiched between the two engines behind the forward cargo hold with almost no forward visibility. The co-driver acted as a human periscope, standing behind the driver and shouting directions over the engine noise. If one engine failed in water, the surviving engine would drive the vehicle into a violent spin.

 Experienced crews could sometimes counter the rotation using the brake levers, but in rough water or under fire, it was a terrifying prospect. This vulnerability was never fully resolved during the Terrapin service life. Now, before we see how this performed in combat, if you are enjoying this deep dive into British engineering, hit subscribe.

 It takes a second, costs nothing, and helps the channel grow. Right, let us get into the combat record. The Terrapin was originally intended for the D-Day landings, but it was never used on June 6th, 1944. That turned out to be fortunate. The rough channel sees that day sank numerous DD Sherman tanks and would almost certainly have swamped the shorthauled open topped terrapins.

Instead, the vehicle’s combat debut came 4 months later in one of the war’s most difficult campaigns. During Operation Switchback, Terrapens and Buffaloos of the Fifth Assault Regiment, Royal Engineers, part of the 79th Armored Division, carried the 9th Canadian Infantry Brigade across the mile wide BMAN Inlet.

 The assault force landed near the hamlet of Hofplat behind the German defensive line. According to Canadian operational records, the crossing was a surreal experience. As darkness fell, only tail lights showed. The terrapin engines created a sound so like roaring aircraft that anti-aircraft guns across the estie fired sporadically at nothing.

 What had been planned as a diversionary attack succeeded so completely that it became the main effort, turning the German defenses from the rear and accelerating the clearance of the entire Bran’s pocket. 17 days later on October 26th, Terrapins carried elements of the British 52nd land division on a remarkable 13 km crossing of the Shelt esturie.

 The assault force traveled from Tusen to a beach head near Huda Kenska on South Bevland. This was an extraordinarily long water transit for a vehicle known to be easily swamped in rough conditions. The operation outflanked the German defensive line along the canal through South Bevland, which had been holding up the entire Allied advance.

 There is an irony worth noting here. The 52nd Land Division was Britain’s only designated mountain division. Its first combat came not on mountain tops, but being fed by terrapins across flooded Dutch boulders that sat below sea level. On November 1, 1944, the assault on Weran Island began. RAF Bomber Command had dropped 2762 tons of bombs on the island’s dikes, flooding 80 to 85% of the interior.

 What had been farmland and villages became a vast shallow lagoon ringed by massive sand dunes bristling with fortifications. An estimated 10 to 12,000 German troops of the 70th Infantry Division held defensive positions along the remaining dry ground. They were protected by over 50 coastal artillery pieces ranging from 75 mm guns to 220 mm heavy batteries.

Terrapens of the sixth assault regiment, Royal Engineers navigated this flooded landscape. They carried troops and ammunition forward and evacuated wounded soldiers back across terrain that no other wheeled vehicle could cross. Surviving crew accounts describe appalling conditions. The water was freezing. The mud sucked at the wheels.

German artillery fire was constant. The stakes were enormous until Walaran fell. The port of Antwerp could not open. And without Antwerp, the Allied advance into Germany risked grinding to a halt. The Terrapin’s final major deployment came during Operation Plunder. the Ryan Crossing on March 23, 1945.

 The 79th Armored Division deployed roughly 600 buffaloos as the primary assault vehicles, which made over 3,800 trips across the river. Terrapin served in a follow-up role, fing supplies and reinforcements after the initial assault waves had established bridge heads on the far bank. How did the Terrapin compare to its rivals against the American DUKW? The disadvantages were stark.

 According to comparative assessments, the DUKW was three times faster on roads at 50 mph. It had more than double the range at 400 m. Its longer 31 ft hull handled rough water far better. It used conventional steering with a rudder rather than the exhausting skid steering levers, and its driver could actually see forward. Critically, the DUKW’s single unified cargo bay could carry large indivisible loads like artillery pieces.

 The Terrapin’s cargo area was split into two separate compartments by the centrally mounted engines, which negated much of its theoretical 4-tonon payload advantage. The Dukew also pioneered the world’s first central tire inflation system, allowing the driver to adjust tire pressure while moving to match different terrain.

 The Terrapin’s one genuine advantage was its steel hull, which provided some ballistic protection that the completely unarmored DUKW lacked. Germany, by contrast, never developed a heavy amphibious transport at all. The Shrimvagen, Germany’s most produced amphibious vehicle at over 15,000 built, was a 25 horsepower Volkswagen derivative that carried just four men.

 It was an amphibious scout car for officers, not a logistics vehicle. This reveals a strategic blind spot. Germany invested in individual tactical mobility. Britain invested in the capacity to move entire infantry brigades across water obstacles at division scale. When the flooded boulders of the Netherlands turned the battlefield into a shallow lake, the Germans had nothing to match what the 79th Armored Division could deliver.

After the fighting stopped, the Terrapin story took a surreal turn. On Walsher, the broken dikes were not fully repaired until October 1945, and the island remained partially flooded into early 1946. During this period, Terrapens were repurposed as civilian public transport, carrying Dutch residents across submerged village streets.

 Newsre footage from February 1946 shows military amphibious vehicles navigating flooded roads past horsedrawn carts. Assault vehicles designed for war serving as island buses. A MK2 prototype had shown promise with a longer 31 ft hull, forward driving position, unified cargo bay, and 5-tonon payload. Only five were built before the program was cancelled.

 The concept of a wheeled amphibious logistics vehicle lived on in the Alvis stalwart which entered British Army service in 1963 and addressed virtually every floor that had plagued the terrapin serving until 1993. The vast majority of the original 500 terrapins were scrapped. Today surviving examples are among the rarest World War II vehicle survivors.

 A single unrestored terrapin exists in the Wheatcraft collection in Leicester. October 9, 1944. the Breman Inlet. Those bizarre machines that rolled into the water carried 900 Canadian soldiers across a mile of open estie in darkness. By dawn, the soldiers were behind the German lines. A diversionary attack had become a breakthrough.

 The Terrapin was loud, blind, difficult to steer, and prone to swamping. It was also British, available when it mattered, and capable of crossing terrain that stopped everything else. Thorncraft took two Ford engines, eight wheels, and a steel hull, and built something that worked well enough under conditions that defeated conventional vehicles.

 Postwar assessments were blunt. The vehicle was officially described as not an overall successful design, with many significant defects, which were never overcome in service, but those same assessments acknowledged that it performed adequately in the specific critical role for which it was built, not effortless superiority, but engineering pragmatism under pressure.

 That is what British innovation looked like in 1944. And that is the Terrapin’s legacy.
